Beschrijving LevelOne GVT-0300 netwerk transceiver module Vezel-optiek 1250 Mbit/s SFP 850 nm
- Small Form Factor Pluggable MSA compliant
• For Multi-mode Applications
• Up to 850nm & 1.25Gbps
• Compliant for IEEE802.3z Gigabit Ethernet
• Easy to install and Hot-pluggable
• Connect switches up to 550m away with each other
• Single 3.3V power supply
• Duplex LC Connector
• TTL signal detect indicator
• EEPROM with serial ID functionality
Product Overview

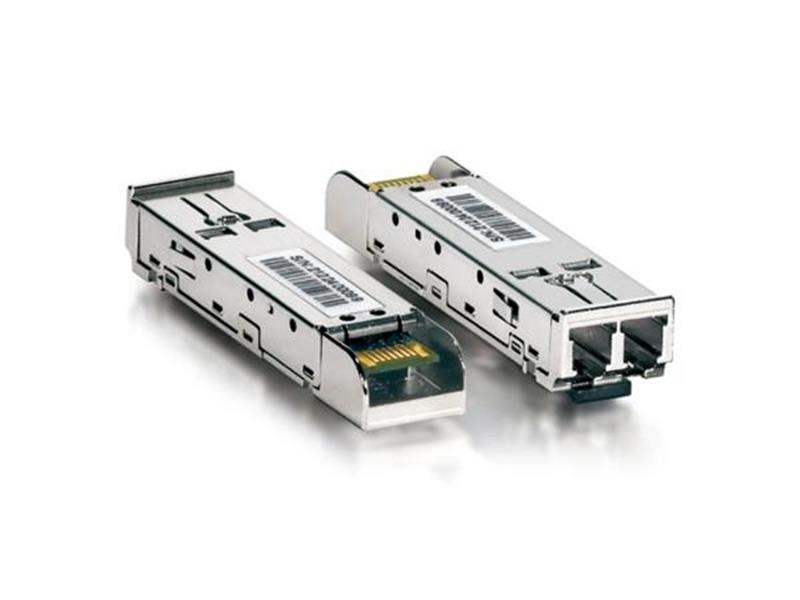

The LevelOne GVT-0300 SFP (Small form-factor pluggable) fiber optic transceiver provides fullduplex connectivity over multi-mode fiber at distances up to 550 meters. GVT-0300 is designed for use in Gigabit Ethernet networks to provide an IEEE-802.3z-compliant link for 1.25 Gb/s speeds to serve short-range applications. GVT-0300 operates at a nominal wavelength of 850nm and complies with a Multi-Source Agreement (MSA) for compatibility between manufacturers. It comes with a click-and-latch
LC connector for a solid connection into the SFP port.
Multi-Purpose Usage
GVT-0300 can be used for distributed multiprocessing, switch-to-switch, converterto-switch, or converter-to converter interfaces, high-speed I/O file transfer, bus extension applications, and as a channel extender in data storage applications.

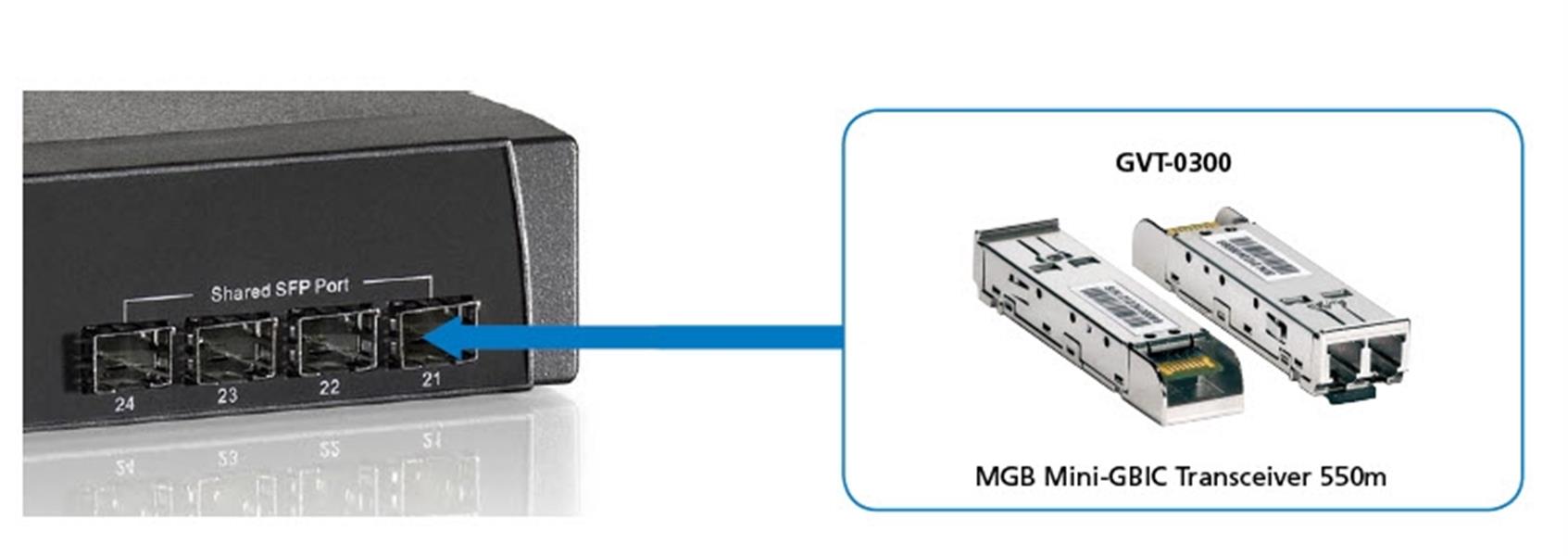

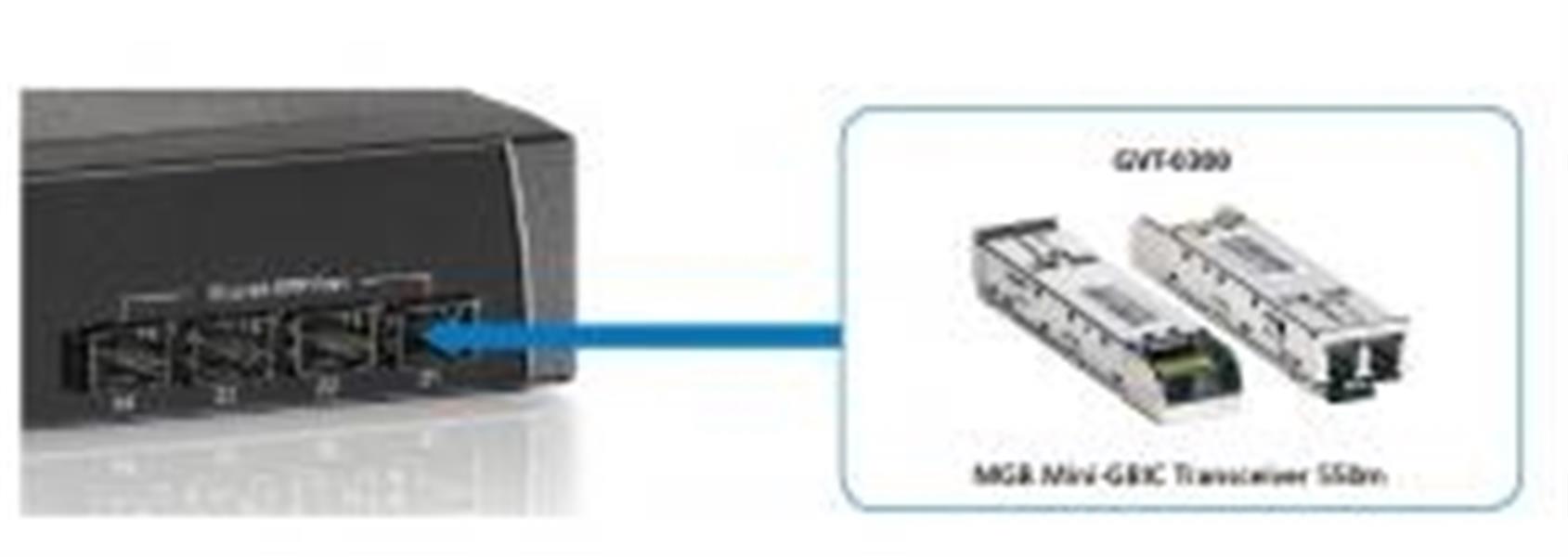

LevelOne GVT-0300 can be used in any LevelOne switch or converter that can accommodate SFP (Mini-GBIC) transceivers.
Specificaties LevelOne GVT-0300 netwerk transceiver module Vezel-optiek 1250 Mbit/s SFP 850 nm
| Prestatie |
|---|
| Vezel-optiek |
| 1250 Mbit/s |
| SFP |
| Ja |
| LC |
| 50/125,62.5/125 µm |
| SX |
| 550 m |
| 850 nm |
| -9,5 dBmW |
| -4 dBmW |
| 8,5 dB |
| IEEE 802.3z |
| Kenmerken |
|---|
| Ja |
| Taiwan |
| GSW-2453\nGVT-4000 |
| Class 1 Laser |
| Energie |
|---|
| 3.5 V |
| 6 V |
| 0,3 A |
| Eisen aan de omgeving |
|---|
| 0 - 70 °C |
| 5 - 90 procent |
| Gewicht en omvang |
|---|
| 13,4 mm |
| 56,6 mm |
| 8,4 mm |
| Verpakking |
|---|
| 1 stuk(s) |
| 155 mm |
| 50 mm |
| 230 mm" |
Algemene kenmerken
- SKU
- GVT-0300
- EAN
- 4015867224380
- Merk
LevelOne
